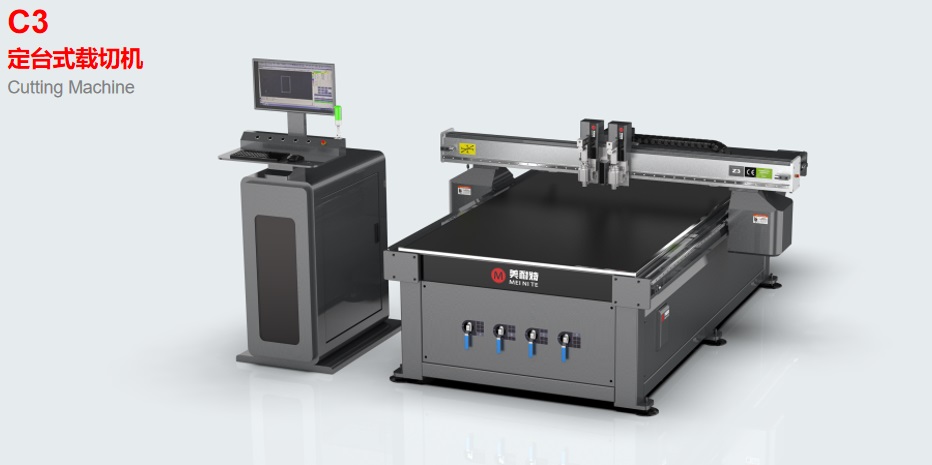

C3 Digital Cutting Machine

High-precision C3 digital cutting machine with CCD vision positioning, dual tool modules, and vacuum table. Ideal for signage, advertising, and print-and-cut applications.

Description

The C3 digital cutting machine is a newly developed intelligent vision-positioning cutting CNC device from MNT. It features an inline steel-structure industrial bed, a full-aluminum gantry, and a fixed vacuum adsorption table design. The bed undergoes industrial welding and stress relief treatment before being precision-machined to final form in a single setup on a high-accuracy gantry mill.

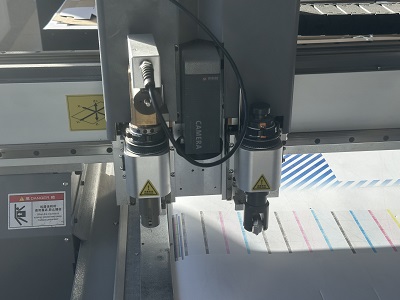

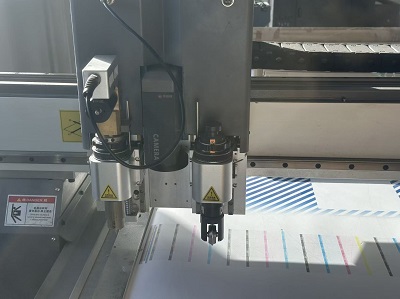

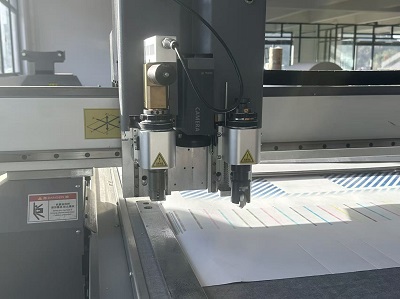

It is equipped with 2 universal tool modules, a CCD vision positioning system, and a high-power dust extraction system. Operated by a high-performance motion control system and specialized engraving/cutting CAM software, the C3 offers user-friendly operation, fast processing speeds, and high precision.

C3 Digital Cutting Machine

Features:
1.Integrated Vision Positioning:
Utilizes a CCD vision system for accurate alignment and cutting, ideal for pre-printed or irregular materials.
2.Robust and Precise Construction:
The inline steel bed, full-aluminum gantry, and single-setup machining ensure structural rigidity and long-term geometric accuracy.
3.High-Performance Cutting System:
Combines a high-frequency oscillating knife for clean cuts on various materials with a powerful dust extraction system.
4.Efficient and User-Friendly Operation:
Powered by a high-performance motion control system and professional CAM software for fast, precise, and easy-to-use workflows.
5.Wide Material and Application Range:
Capably processes a diverse set of materials (boards, plastics, composites, films, packaging) for the advertising, signage, and print finishing industries.

C3 Digital Cutting Machine Parameter:



Working area

2500mm×1300mm

Frequency

18000rpm/min

Rapid traverse speed

72m/min

Vacuum pump power

7.5kw

Max. Process speed

35m/min

Process accuracy

±0.05

Repeat position accuracy

±0.02

Transmission

Rack

Voltage

AC380V 50Hz

N.W.

1500kg

Resource



Widely used in advertising, signage engraving, and print-and-cut applications, it is suitable for cutting materials such as:
KT Board, PVC Panels, Plastics, Carbon Fiber Composites, Light Panels, Flexible Films, Self-Adhesive Materials, Carton Packaging, etc.

FAQ

Latest blog

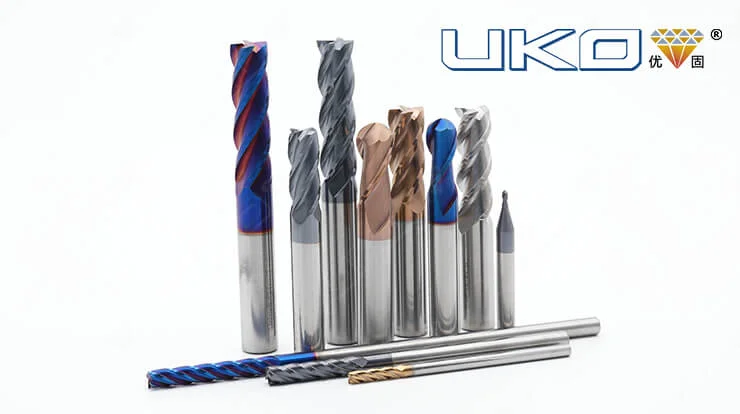

What’s the difference between flat end mill, ball nose end mill, corner radius end mill?
UKO’s end mill can be divided into HRC45 HRC55 HRC65, etc. According to coating, it can be divided into uncoated, AlTiN, TiSiN, AlTiSiN, DLC coating, diamond coating end mills, etc. […]
High-speed steel or tungsten steel, how to choose the material?
High-speed steel (HSS) is a kind of tool steel with high hardness, high wear resistance, and high heat resistance, also known as wind steel or edge steel, which means that it can be hardened and sharp even when it is cooled in the air during quenching. Some are called white steel. […]

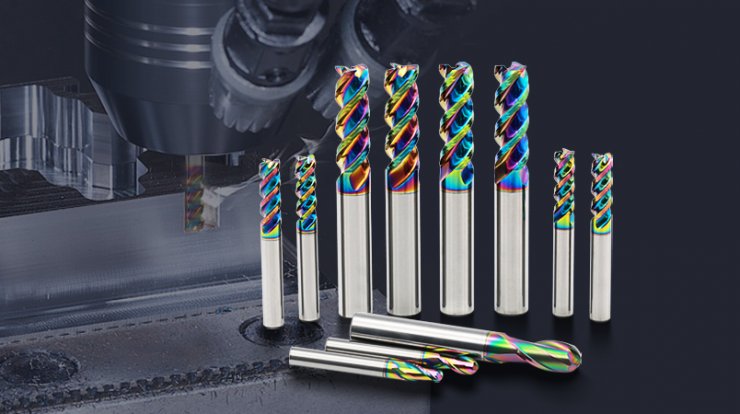

Who can reject such an excellent DLC-coated end mill?
