Description

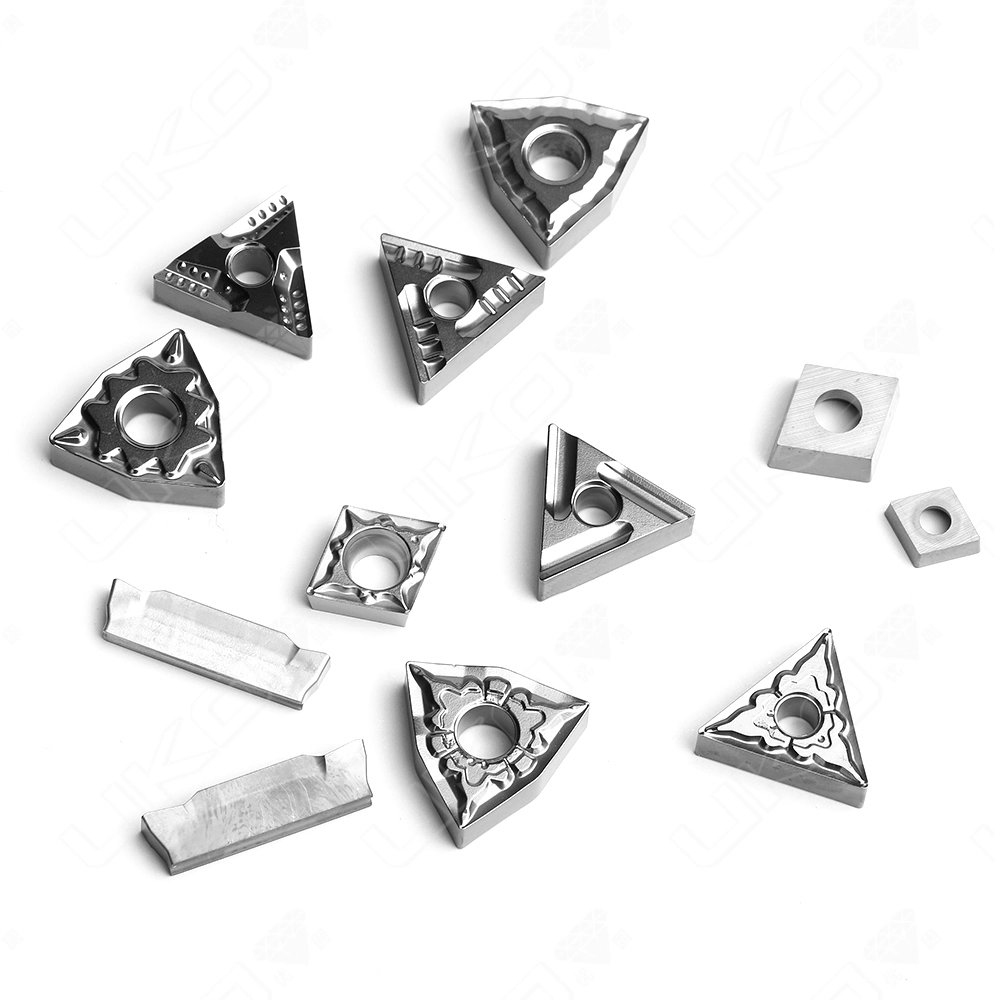

UKO Cermet Inserts are an enhancement to our general turning inserts, specifically designed for high-speed finishing. Compared to our Carbide inserts, Cermet inserts allow faster cutting speeds, with less deterioration and wear during uninterrupted cutting.
Cermet is a trend to use in CNC cutting processing in the future, UKO provides a standard type of cermet turning inserts such as TNMG/CNMG/WNMG/CCMT/TCMT/DCMT/DNMG, etc.
UKO’s cermet turning inserts grade is suitable for machining steel, powder metallurgy metal, difficult to process cast iron and stainless steel materials for superficing processing, finishing and semi-finishing.
Features:
- The scope of application has different chip-breaking grooves and geometric bilateral and single-sided-side cermet blades, including amelioration blade.
- Covered several standard blade-shaped cermet vehicles with chip-breaking grooves, which helps to select a more suitable Chip-Breaking Grooves for each chip-breaking grooves.
- Chip-Breaking Grooves design is designed to be able to reliably chip-breaking in fully automated processing applications.
Ti(C,N)-based Cermet Cutting Tools exhibit excellent red hardness and excellent resistance to crescent crater wear under high-speed cutting conditions.
X-axis: Surface finish ;
Y-axis: Cutting speed
Blue: CCX – High efficiency and long tool life oriented
Dark grey: PVD coated cermet – Good balance of high-efficiency machining and surface finish quality
Light grey: Cermet – Surface finish oriented
Related products
Why choose us?
- CVD coated carbide: the aluminum oxide coating using fine grains increases the wear resistance of the carbide inserts and breaking resistance.
- PVD coated carbide: adopts a unique PVD nano-coating that effectively improves the quality of the carbide blades.
- Cermet: optimized tissue and special alloy binding phase, improved wear resistance and chipping resistance, good finishing surface, and high-speed cutting.
- Cemented carbide: The surface treatment method of special carbide matrix is adopted, suitable for cutting aluminum alloy, copper alloy, non-metallic material, etc.
- A high-quality grinding tool ensures high precision and repeatability.
- Suitable for the stability of all workpiece materials, reduce machine tool accident shutdown.
- Optimized coating processes can extend carbide blades life or increase productivity.
- We offer a number of optional indexable carbide inserts shapes while ensuring that the toughness of carbide inserts and carbide inserts wear resistance can we ensure the service life of carbide blades.
- Based on the type and shape of the processing workpiece, there are a variety of solutions suitable for blade clamping.
- We combine the integrated cutting parameters, the geometric structure of chip-breaking grooves, and the three aspects of the cutting force, and reasonable chip-breaking grooves design promotes chip curling, break, protects the tool, and enhances the life of carbide inserts.
Resource
FAQ

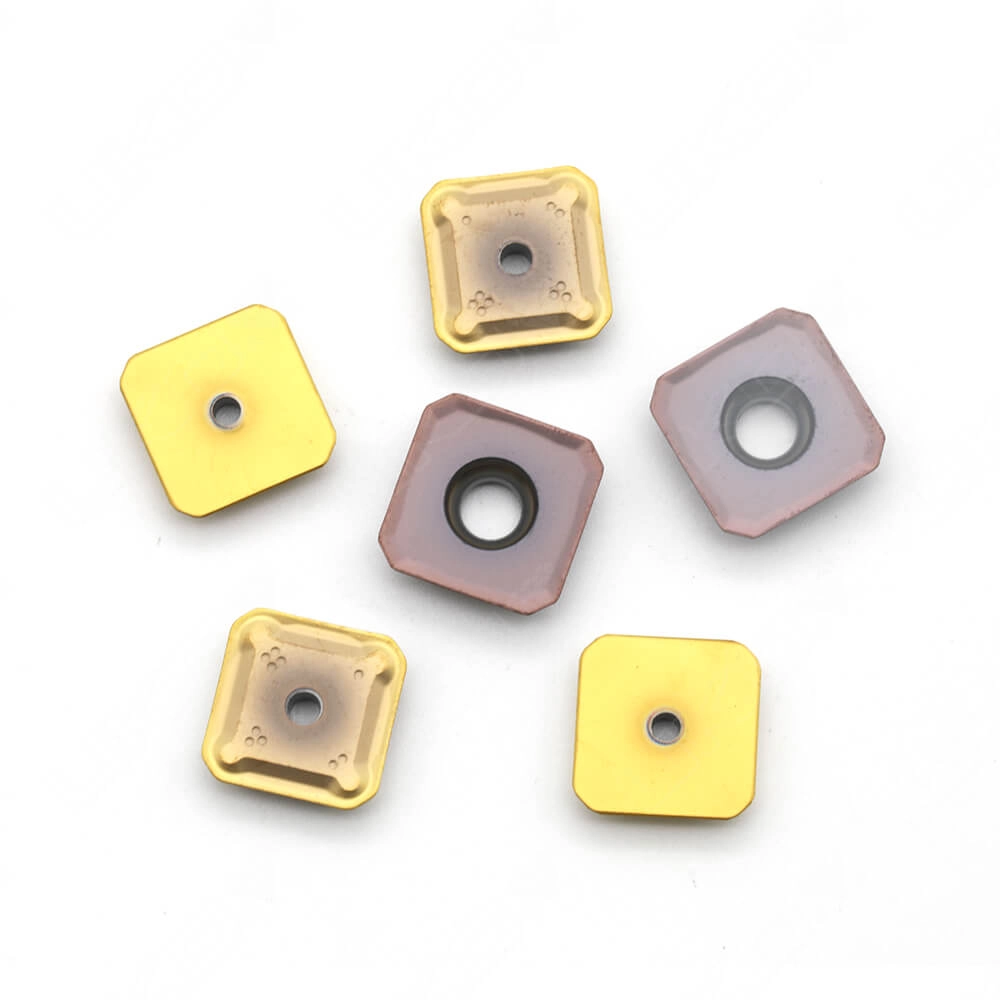

Since there are multiple options to combine particular tools and face milling operations, you may need some explanations on how to choose one. Here are some factors to pay attention to while making a decision:
Workload: Some types of face milling operations, like finishing with wiper inserts, suit the manufacturing of large batches of products better. It is correct only when the milling operations go with a combination of proper cutters. General face milling is an ideal option for mixes of small batches of components.
Your particular intent: For example, to remove large amounts of material rapidly and roughly or achieve the highest precision possible. Guide your choice accordingly.
Type of workpieces: In case you ordered castings, be prepared to apply for heavy-duty milling first. But if you have already prepared components, you can go with bare general face milling.
Design of a workpiece: It is highly inadvisable to mill over pre-drilled holes, for example. But the consistency of high feed machining consistency over the surface will severely deteriorate if applied to such a component. Heavy duty and general face milling are less demanding in this aspect.
Design of a finished component and technical requirements: It is frequent that you cannot achieve high precision by using, for example, heavy-duty or high feed milling. So be sure the chosen method meets the requirements set to the finished component’s design. Also, thin-walled components can be produced only by means of general face milling or finishing with wiper inserts (ineffective).
Material of a workpiece: Consider that high feed milling can be performed over the thick sheets of the durable metals by appropriate tooling. So, if you are unsure that a workpiece will withstand increased temperature and pressure, better go with general milling or finishing with wiper inserts.
You can make the decision regarding the choice of a face milling process alone. But do not forget to select an appropriate cutter with a sufficient entering angle as well as per their characteristics above.

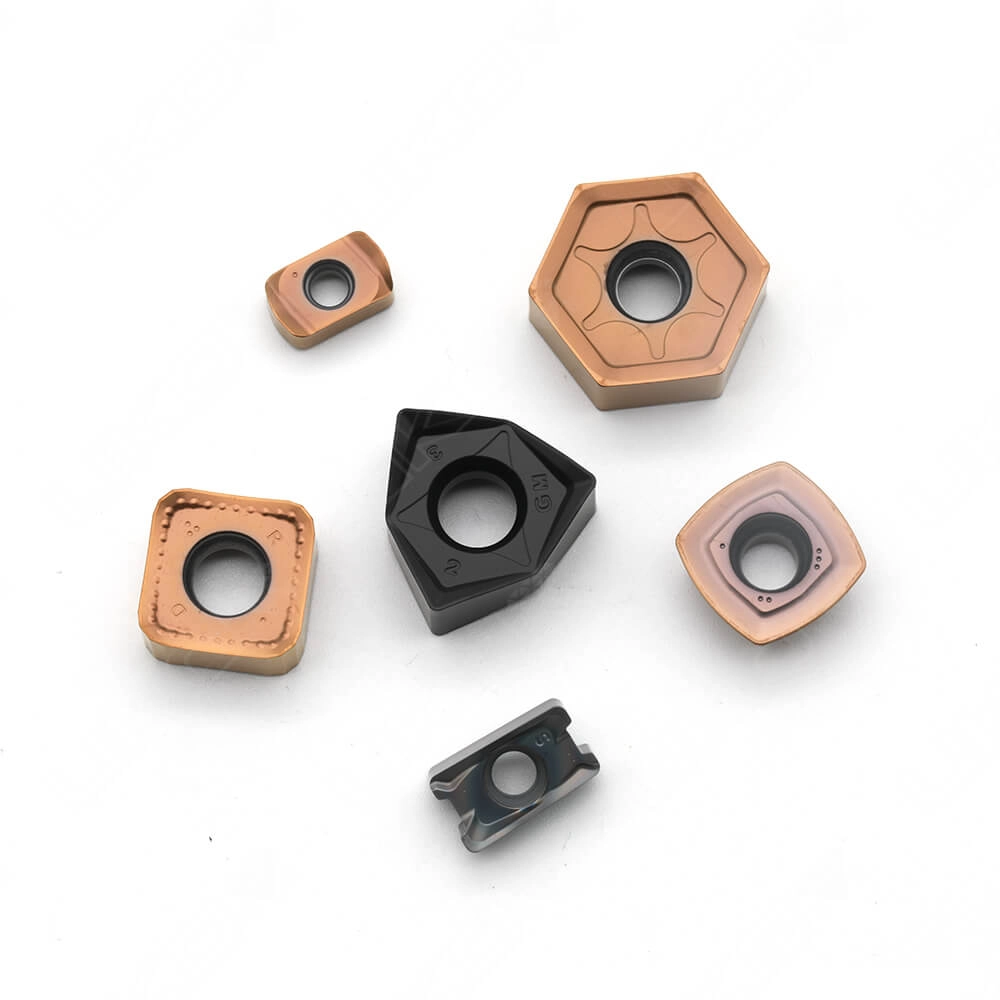

Fast feed milling is a machining method that combines a shallow depth of cut with a high feed rate of up to 2.0 mm per tooth. This combination maximizes the amount of metal being removed from a part and increases the number of finished parts in a given time.
Indexable tools with a low-pressure angle of approx. 10°to 15° are often suitable for high-speed milling. Using a low-pressure angle reduces the chip thickness by up to 80 percent compared with tools with a 90° pressure angle. In this type of machining operation, feed rates per tooth (fz) of well over 1 mm are common. A further advantage of high-feed milling cutters is that the cutting forces flow almost entirely in the direction of the spindle. The result is minimal vibration during roughing operations with large overhangs.
A toric tool can imitate these effects. If the depth of cut (ap) is smaller than the cutting radius, the effective pressure angle decreases. The smaller the depth of cut, the more the distribution of forces shifts in the direction of the spindle.

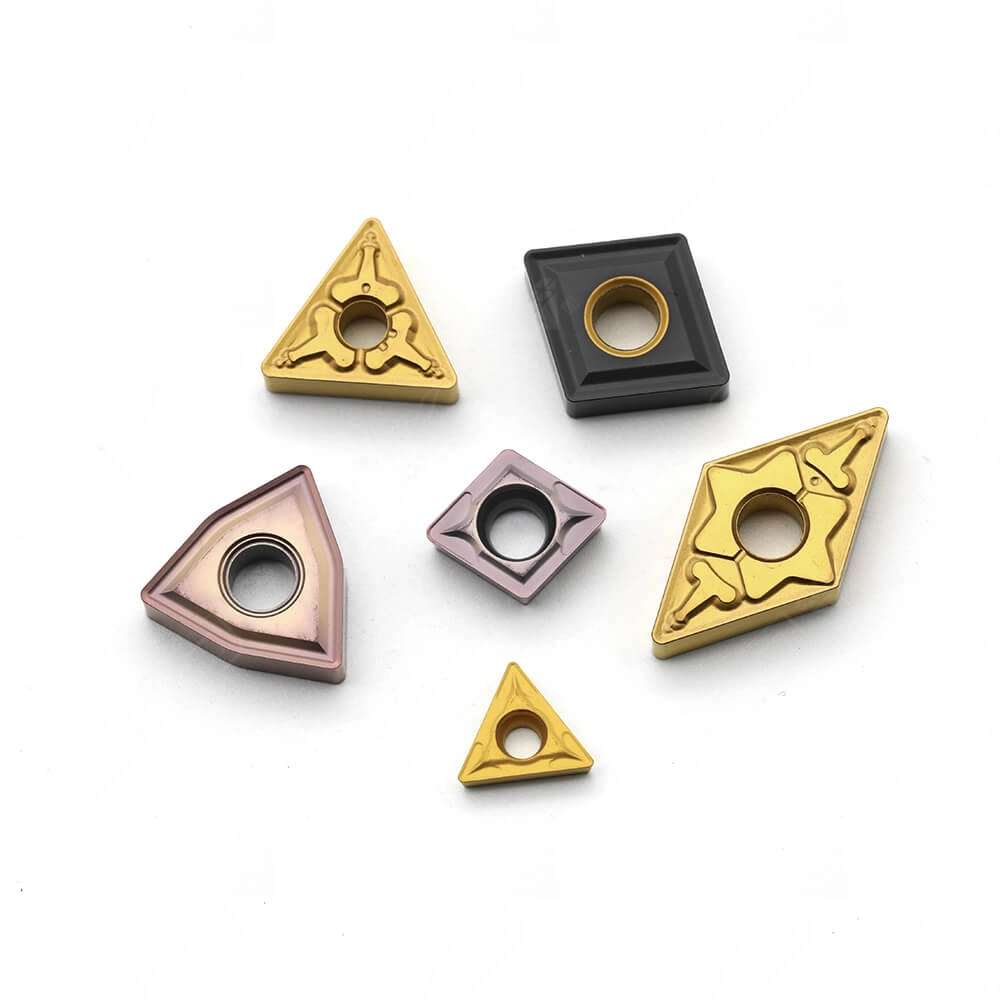

Turning inserts shape symbol:
Turning inserts shape symbol T N M G:
Turning inserts shape symbol clearance angle:
Turning inserts inscribed circle diameter:
Turning inserts corner radius:
Turning inserts chip breaker and hole:
Turning inserts thickness:
The height between insert bottom and nose:
Carbide endmill is an industrial rotating cutting tool that can be used for milling operations, which is made from tungsten carbide (WC) and cobalt (Co) materials. They are also commonly referred to as a “carbide milling bit”. Center cutting end mill can be used for plunging operations (axial milling), and can also be used in side milling operations (radial milling). Non-center cutting bits may only be used in side milling applications.
The most common material used for end mills is tungsten carbide, but HSS (high speed steel) and Cobalt (high speed steel with cobalt as an alloy) are also available.
Aluminum-containing high-speed steel (HSS-Al) is smelted by a method of carbon (Al) elements based on molybdenum high-speed steel and is designed to increase thermal hardness and wear resistance.
The performance of the aluminum-containing high-speed steel is similar to the cobalt-containing ultra-hard high-speed steel, the hardness of the heat treatment is HRC67 ~ 69, the anti-bending strength is 290 kg / square millimeters, the impact value is 2.3~3kg 1m/cm² The high-temperature hardness at 600°C is HRC54~55.
Aluminum-containing high-speed steel (HSS-Al) forging performance and excellent cutting performance, but grinding performance is lower than normal high-speed steel when grinding with white jade wheels, and superior to high-speed steel and high vanadium high-speed steel and high vanadium Cobalt high-speed steel.
The durability of the HSS-Al tool is similar to the cobalt-containing ultra-hard high-speed steel, 1 to 2 times higher than the ordinary high-speed steel, up to 3 to 4 times.
