Nail Gripper Dies
Nail Gripper Dies is an important work component of nail-making machines, which belongs to consumables, so the service life of nail dies is directly related to the production efficiency and benefits of the nail-making plant. Design and manufacturing of planetary thread rolling dies for nails for the nail industry. High performance and long life planetary nail dies, guaranteeing a reliable and stable nail threading process, and minimizing quality problems and reducing manufacturing costs.
Our 15 years of experience in producing nail making tools and segment planetary dies has taught us a lot about the different wire nail machine manufacturers. Relevant nail making machine models include: THA14/32, THA25/60, THA31/80, THA40/120, MTG-A, Model MTG-B, Model MTG-C, Model MTG-D and Model MTG-F, VR10, VR14, VR17, VR20, VR20S, VR 23, VR23 S, VR27, VR30 , etc.
Categroy
UKO’s tools cover all the dies of nail manufacturing. In addition to brazed nail gripper dies, nail cutter,cutting knives and cutter inserts, punches ,Wafios N90 Tools,Wafios N80 Tools and feeders for nail making machines.

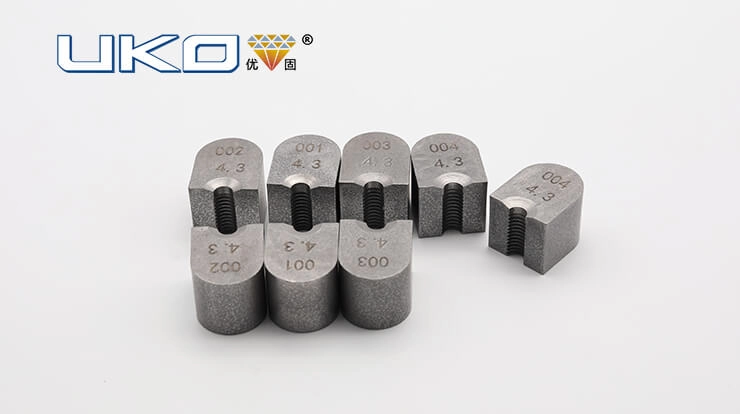

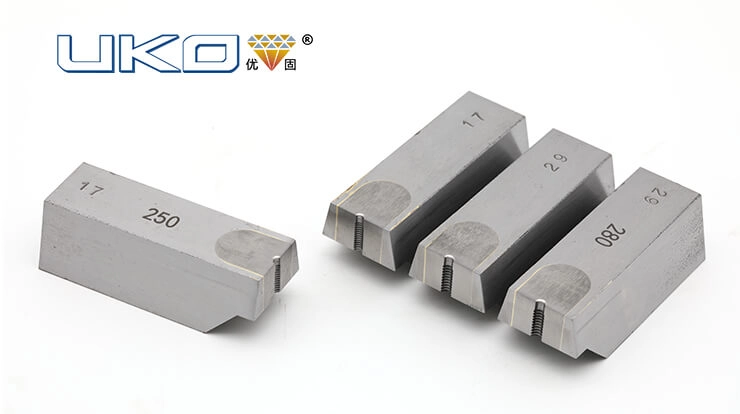

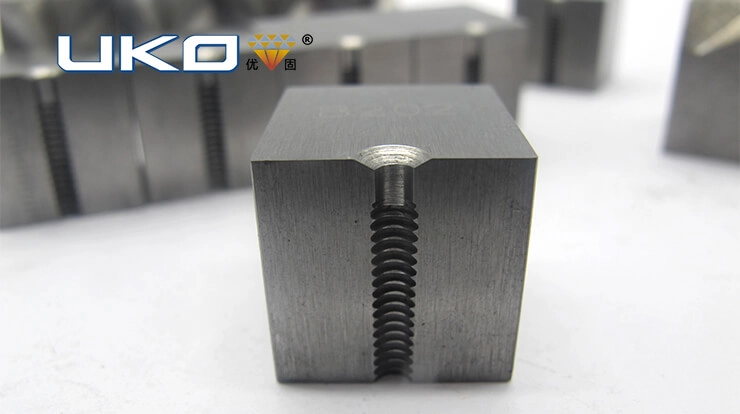

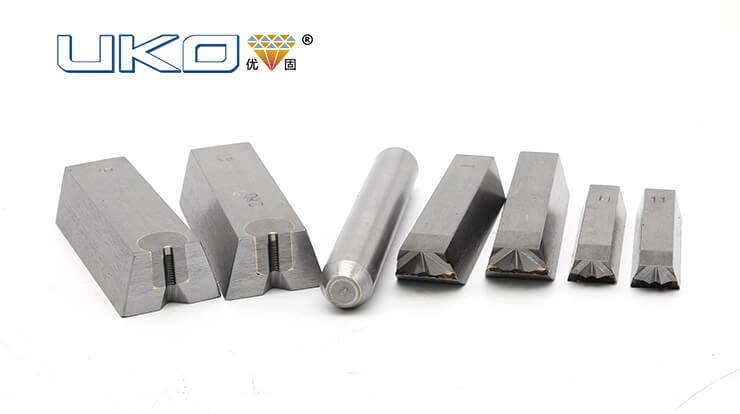

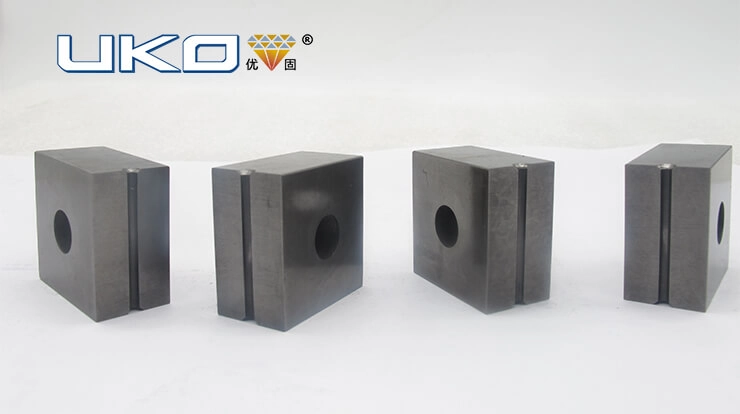

Our Nail gripper dies are available with both brazed tungsten carbide inserts and replaceable tungsten carbide inserts,the replaceable tungsten carbide inserts can be both round and square. For the brazed gripper dies, U type carbide insert or Arc type type carbide insert can be supplied on request. Example of Brazed Nail Gripper Dies Notes:

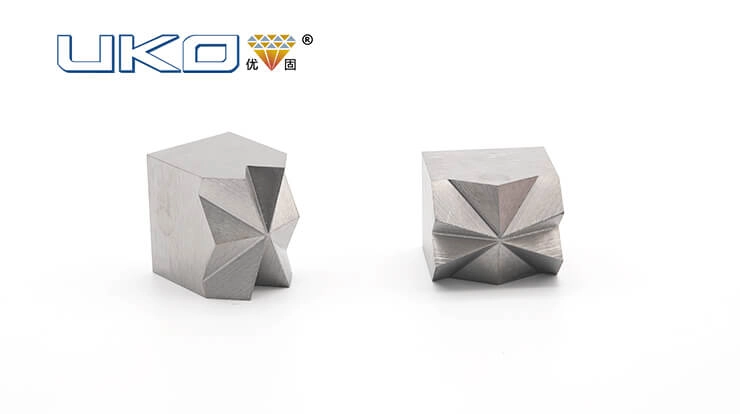

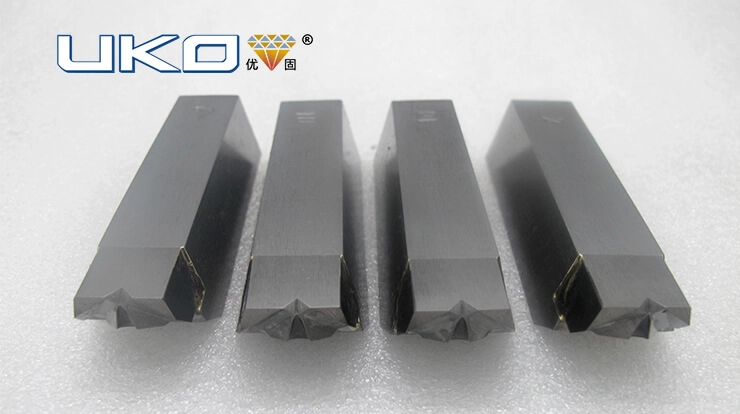

Cutting knives and Cutter inserts,Star points and diamond points are our standard option and are also available. Example Brazed Nail Cutter Dies Notes:

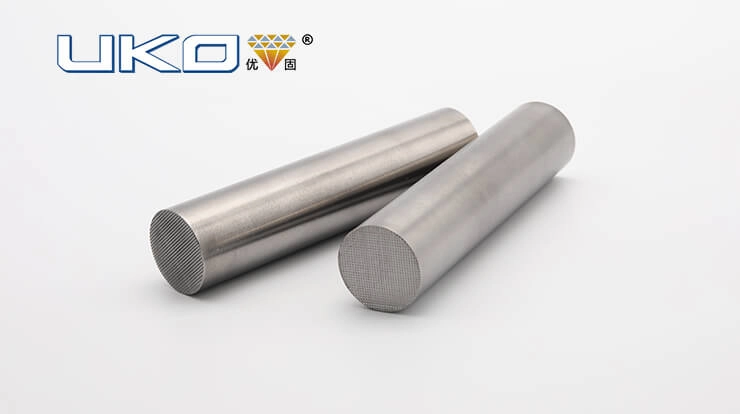

Punches are manufactured according to the customers requests: plain, profiled or grooved,furthermore, full tungsten carbide punches also could be supplied. Example Brazed Punches Notes:
We are able to made a wide range of custom made planetary dies for all type of planetary thread rolling machines (E.W. Menn, Capelli, Nedschroef, Pressvit, Crimella, Sima, Salvi, Key, Waterbury Farrel, Videx, Sakamura, Sacma-Ingramatic, Omega, Prutton, Ruja, Eagle, Seny, Izpe, etc.) and many different thread types such as metric, trapezoidal, annular, knurls, etc.
Also we design and manufacturing of high performance and long life planetary nail dies for the production of nails,our standard type are one rotary and 4 segments,one rotary and 6 segments,one rotary and 8 segments.
Size and type for planetary nail thread rolling dies:
Application
The nails by our dies and cutter as below:
- Common Nails for Framing, Carpentry and Construction.
- Coiled coil nails–smooth shank，Coil nails–ring shank，Coil nails–screw shank，Sharp diamond point，Welded together with steel wire.

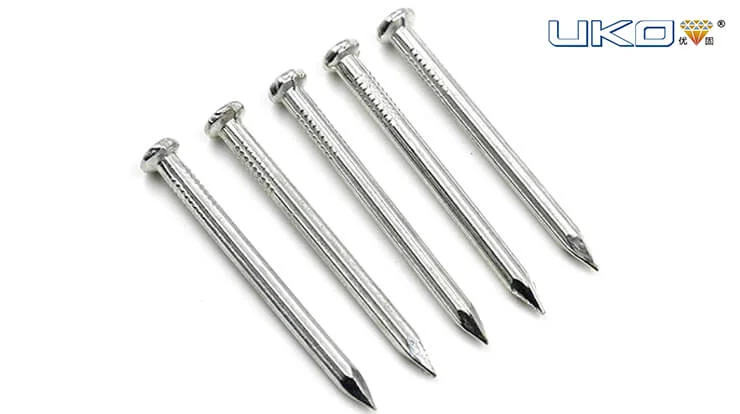

- Concrete Nails With Smooth, Straight Fluted & Twilled Fluted Shanks.
- Roofing Nails–Umbrella Head, Rubber or Plastic Washers.
Resource
High-Speed Coil Nail Collator was specifically designed for automated assembly of finished nails into a reel for pneumatic nailing machines. Dies for coil nail collator is the welding accumulation disk where the nails are turned and welded onto the wire by two points.
The steel nails are placed in the vibrating feeder, the scattered nails are arranged in order, and then enter the welding dies for the wire nail coil collator through the lower track and are welded with two parallel lines to form a row of nails, and then automatically immersed in oil for rust prevention, drying and counting. Rolled into reels (flat-top and tower).
Planetary Thread Rolling Dies
High speed nail making machine is a combination of market demand and any of the advance technology available. Its designed and developed to be highly automated electromechanical integrated product. This nail making machine have wide usages, simple operation and reliable run. We could supply nail gripper dies, brazed cutter and punches for this machine.
Kovopol Automatic THA Nail Making Machine
The automatic THA nail making machines are designed for the manufacture of nails and other products from steel, copper, brass and aluminium alloys wire of round and square section. The nails manufactured suit for further machine processing. We could supply nail tools for nail making machine with type THA 14/32,THA 25/60,THA 31/80,THA 40/120
MTG Series Nail Machine
The machines are designed to minimize the time required for adjusting and changing Dies, Cutters, Punches,the operation can be done easily and quickly by any unskilled workers. We could produce gripper dies, cutters, punches for for nail making machine with type Model MTG-A,Model MTG-B,Model MTG-C,Model MTG-D and Model MTG-F.
Vitari Nail Machine
The VR series of nail making machines was designed to a very low noise rating thanks to the use of soundproof cabins (abt. 80db) designed specifically for each machine model. The nail tools for machine model VR 10,VR 14,VR 17,VR 20,VR 20 S,VR 23,VR 23 S,VR 27,VR 30 can be supplied on request.
Related products
Why choose us?
Gripper dies materials are made of high-quality tungsten carbide materials, with high anti-toughness and fatigue strength, not easy to crack, difficult to break, strong wear resistance, non-wear, high precision, strong stability, long service life.
With more than 15 years of experience in tool manufacturing in carbide and steel material for nail machines. In this period, we have gained a good knowledge of the machine types for which these tools are supplied, as well as the expertise to know which grade of carbide best suits each tool type.
With the power of the nail-making machine, the highly durable carbon steel wire is drawn out and placed on the continuously rotating drum. After continuous pulling, the wire that has been sized is rolled up. By cutting with the machine, it becomes a truncated Rods, and then use electromagnets to suck them into the nail making machine, using nail gripper dies under the action of hydraulic pliers to make the pointed tail of the nail, and then use the press to use the other end of the pin punch to press out the nail head, Nail manufacturing is complete
In engineering, carpentry and construction, nails refer to pointed hard metals (usually steel), which are used to fix wood and other objects. Hammers nail nails into objects, and there are also electric nail guns and gas nail guns. So nails can stabilize objects, they are hooked on them by their own deformation, and rely on friction.
One end of the nail is pointed, and the other end will have a protruding cap. This part is mainly used to clamp the wire by the clamping mechanism, and cold-heading the cap with nail tools when the exposed wire is moved or oscillated. Realized.
The shape of the nail tip is also extruded through a tungsten carbide nail mold. The nail tip is easier, just squeeze it and it’s done. After the nail is finished, the wire is cut by the cutting mechanism. At this time, the clamping mechanism is loosened and the nail is dropped. Then, according to the above method, the mass production of nails is repeated. Mostly in the design of the whole equipment, the inner groove cam is used in the clamping mechanism and the pinpoint mechanism.
This can effectively avoid the use of springs or relying on gravity to restore the pushrod, and it is relatively stable. The accelerated motion is a flexible impact, and the impact is relatively small, which is also more beneficial to improve production efficiency.
How are nails made?
With the power of the nail-making machine, the highly durable carbon steel wire is drawn out and placed on the continuously rotating drum. After continuous pulling, the wire that has been sized is rolled up. By cutting with the machine, it becomes a truncated Rods, and then use electromagnets to suck them into the nail making machine, using Nail Gripper Dies under the action of hydraulic pliers to make the pointed tail of the nail, and then use the press to use the other end of the pin punch to press out the nail head, Nail manufacturing is complete
In engineering, carpentry and construction, nails refer to pointed hard metals (usually steel), which are used to fix wood and other objects. Hammers nail nails into objects, and there are also electric nail guns and gas nail guns. So nails can stabilize objects, they are hooked on them by their own deformation, and rely on friction.
Nail types can be roofing nails, collated nails, flat coil nails, jumbo copl nails，canical nails, and so on.
Nail cutter for diamond point, clinch point, chisel point, and blunt point.
Yes, we can accept the customized products. Our product applies for Wafios, and we can offer drawing for your reference.
