X1-1390 CO₂ Laser Cutting Machine

The MNT X1-1390 CO₂ Laser Cutting Machine delivers high-precision cutting and engraving for non-metal materials such as acrylic, wood, PVC, MDF, and PTFE. Featuring imported linear guides, II-VI optics, USB offline operation, and optional rotary axis, it is ideal for die-cutting and industrial fabrication.

Description

The X1-1390 CO₂ Laser Cutting Machine is compatible with Microsoft Windows 2000/XP and all Windows-based drawing software, ensuring easy operation. It features a USB port for direct file reading from flash drives and supports both offline and online operation modes.
The system utilizes imported ultra-quiet linear guides to guarantee engraving precision and extended service life during high-speed operation. Optional red-light positioning and a rotary axis enable precise multi-angle processing, enhancing efficiency and saving time. An imported II-VI focusing lens improves laser output stability. Its high-speed engraving and cutting capabilities, with optimized arc cutting speeds, ensure fast processing. An optional lifting platform facilitates the machining of workpieces with varying thicknesses. An integrated LED work light provides excellent visibility of the processing area, and a built-in drawer allows for convenient waste material collection.

X1-1390 CO₂ Laser Cutting Machine Parameter:

Working area 1300mm×900mm
Laser power 100w/130w/150w
Cutting accuracy ±0.05mm/1000mm
Max cutting thickness 30mm (acrylic)
Repeat position accuracy <0.1mm
Compatible format DXF, Type3, CDR, AI, etc
Power rating 4kw
Dimension 2000mm×2050mm×1000mm
Voltage AC220V 50Hz
Transmission Rack
N.W. 450kg

1.Broad Software Compatibility & Easy Operation:
Works seamlessly with Windows 2000/XP and all major drawing software, featuring a user-friendly USB interface for direct file transfer and flexible offline/online operation.
2.Precision & Durability Engineered:
Built with imported ultra-quiet linear guides and an II-VI focusing lens to ensure high precision, stability, and long-term reliability during high-speed cutting.
3.Enhanced Capabilities with Options:
Offers productivity-boosting options like red-light positioning, a rotary axis for complex angles, and a lifting platform for varied material thicknesses.
4.Operator-Friendly Design:
Includes practical features such as an LED work light for clear visibility and a built-in drawer for easy waste management.
5.Versatile Material Processing:
Capably handles a wide range of non-metallic sheets (PVC, MDF, acrylic, wood, PTFE, etc.), making it ideal for die-cutting and fabrication applications.

This system is professionally designed for processing various non-metallic thin to medium sheets, including:
Die-cutting boards, PVC, MDF (Medium-Density Fiberboard), Acrylic, ABS, Wood, PTFE materials, etc.

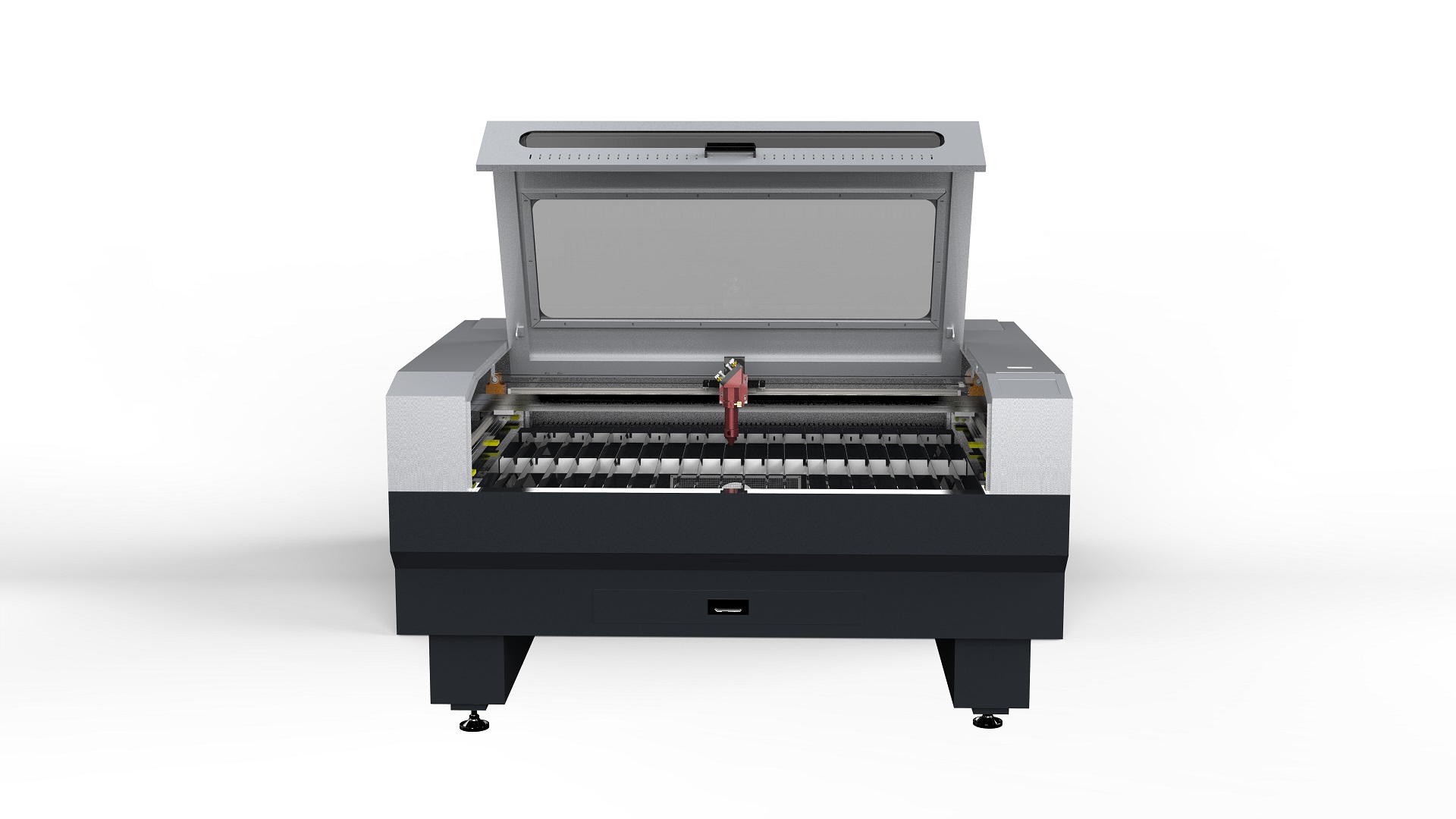

X1-1390 CO₂ Laser Cutting Machine

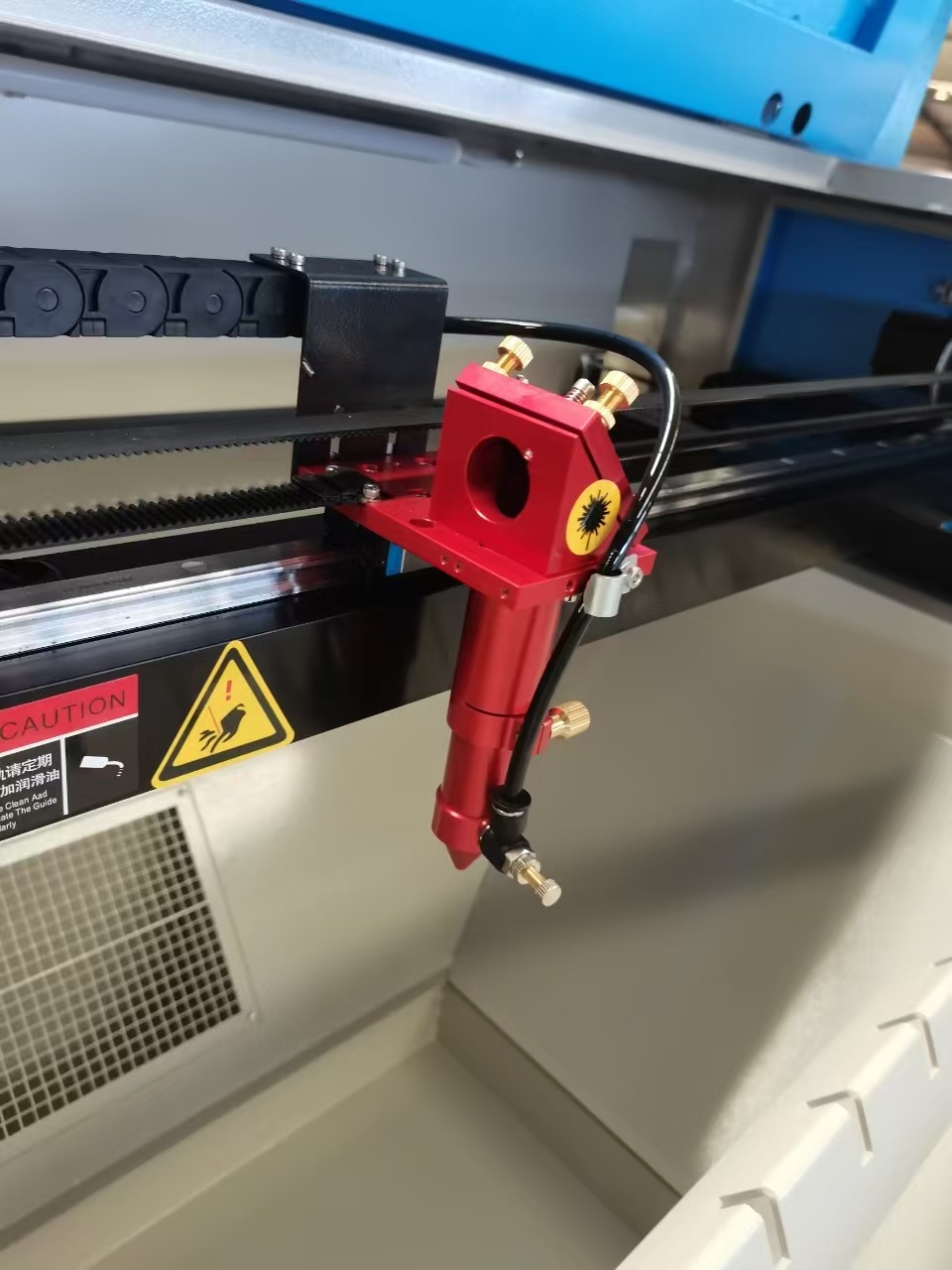

Laser Head

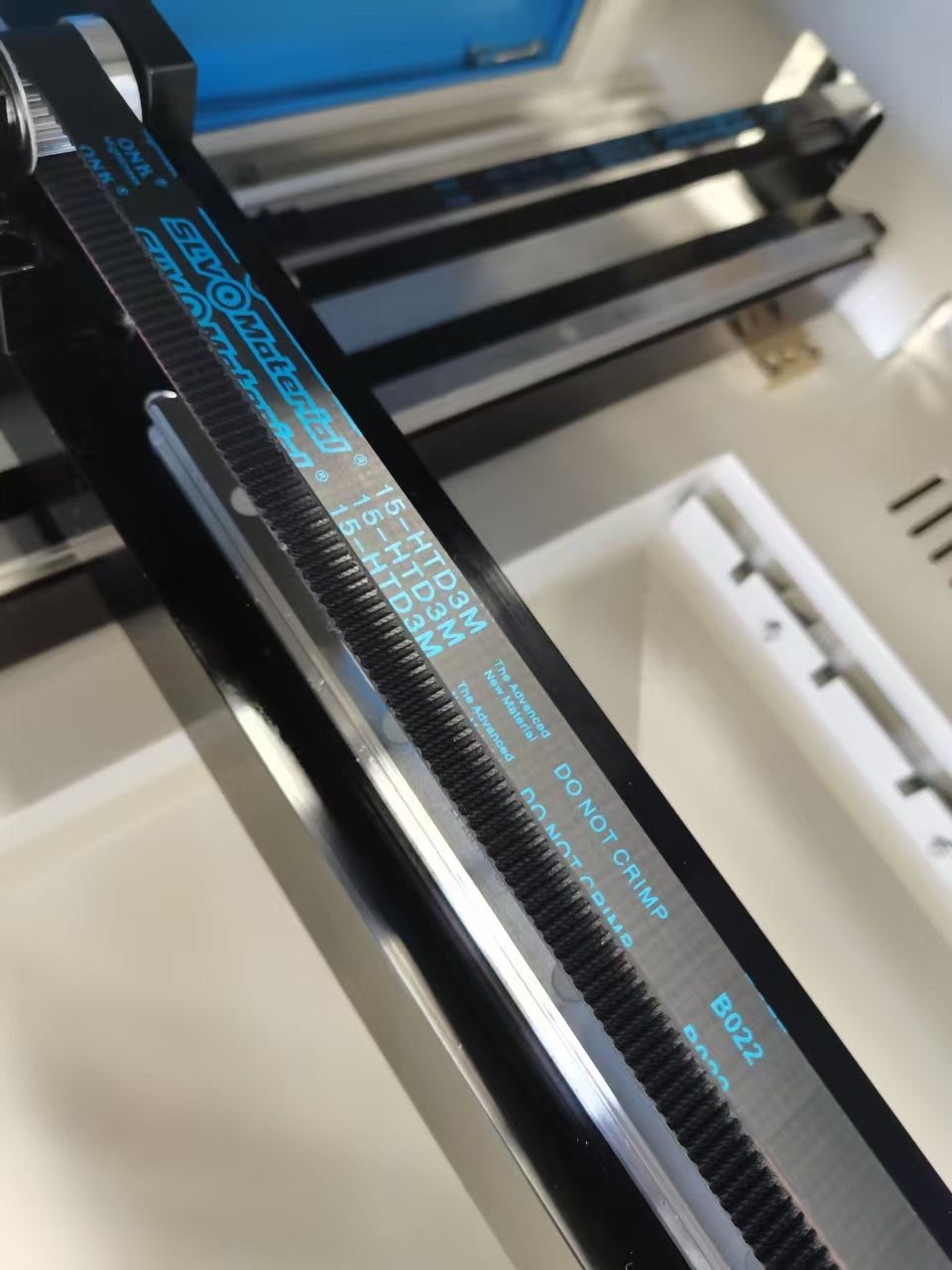

Transmission Belt

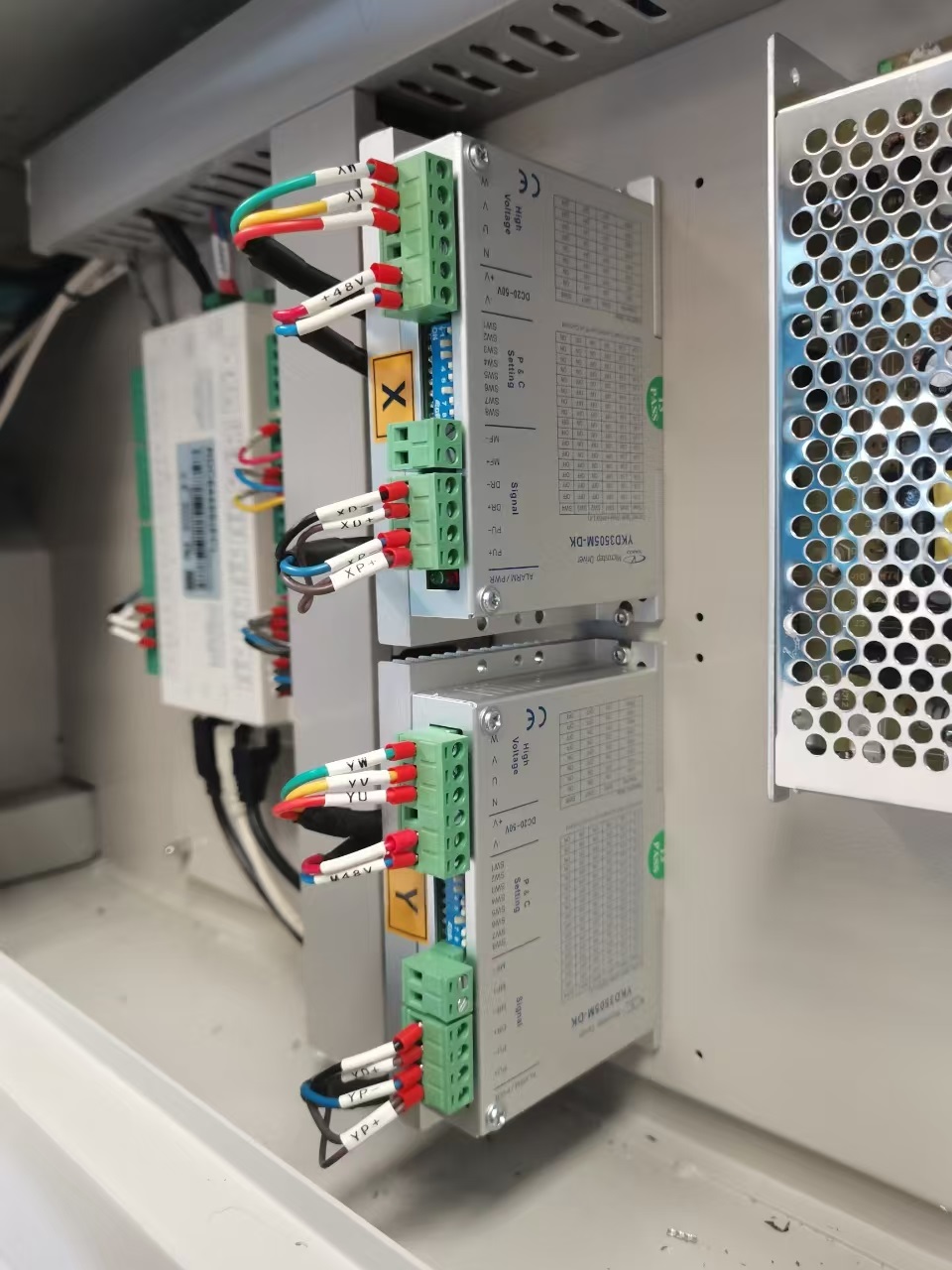

Drive System
