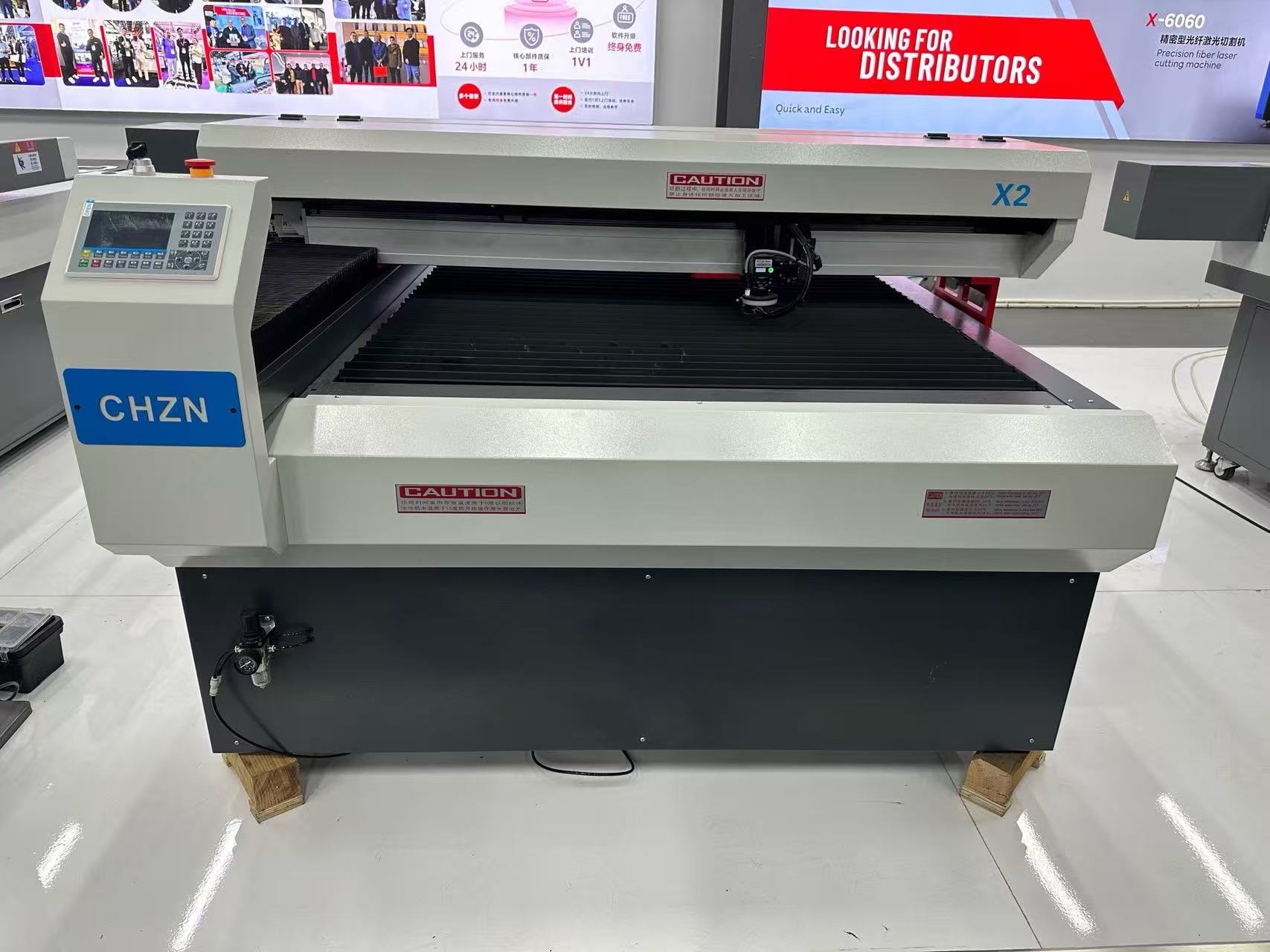

X2-1325 Precision Laser Cutting Machine

The MNT X2-1325 Precision Laser Cutting Machine is a high-performance CNC laser system designed for accurate and high-speed processing of non-metal materials. Equipped with ball screw drives, imported linear guides, servo motors, and a rigid heat-treated gantry structure, it delivers exceptional precision, stability, and reliability for industrial fabrication applications.

Description

The X2-1325 Precision Laser Cutting Machine incorporates a high-power, high-performance laser source and is equipped with precision ball screw drives, imported high-precision linear guides, and other efficient transmission mechanisms. As a CNC-controlled laser cutting system, it represents an advanced high-tech product integrating laser cutting technology, precision machinery, and CNC engineering.

Built with a gantry structure and driven by servo motors, the X2 delivers high accuracy and rapid processing speeds. Its welded bed construction undergoes post-weld annealing and vibration aging treatment, ensuring exceptional rigidity, stability, and vibration resistance.

X2-1325 Precision Laser Cutting Machine

Features:
1.Precision & Speed:
Combines high-accuracy ball screw drives, linear guides, and servo motors for fast, precise cutting performance.
2.Robust Construction:
Features a welded and heat-treated gantry bed with high rigidity, stability, and shock resistance.
3.Advanced System Integration:
Integrates a high-power laser, precision mechanical components, and intelligent CNC control in one platform.
4.High-Tech Design:
Represents a multidisciplinary fusion of laser technology, precision mechanics, and digital control systems.

X2-1325 Precision Laser Cutting Machine Parameter:

Working area 1300mm×2500mm
Laser power 150w/300w/450w/600w
Cutting accuracy ±0.1
Max cutting thickness 30mm (acrylic)
Repeat position accuracy <0.05mm
Compatible format DXF, Type3, CDR, AI, etc
Power rating 5kw
Dimension 3600mm×1850mm×1300mm
Voltage AC220V 50Hz
Transmission Screw
N.W. 900kg

Resource

This system is professionally designed for processing various non-metallic thin to medium sheets, including:
Die-cutting boards, PVC, MDF (Medium-Density Fiberboard), Acrylic, ABS, Wood, PTFE materials, etc.
