X1814 Automatic Feeding Laser Cutting Machine

X1814 automatic feeding laser cutting machine with dual laser heads, auto-nesting system, and conveyor belt table. Ideal for fabric, textile, leather, and carpets.

Description

This X1814 automatic feeding laser cutting machine features a track-type triangular mesh belt work platform. By integrating dual laser heads with an intelligent auto-nesting system, it achieves high cutting speeds, maximizes fabric utilization, and enables continuous feeding for uninterrupted production.

The large-format system delivers smooth, precise cuts, making it ideal for processing full rolls of fabric. Its feeding system utilizes a specialized chain-driven triangular mesh belt table, allowing materials to move freely on the cutting platform via an automated track feeding device. The fully automatic feeding and collection system saves time, boosts efficiency, and can be customized in size to meet specific user requirements.

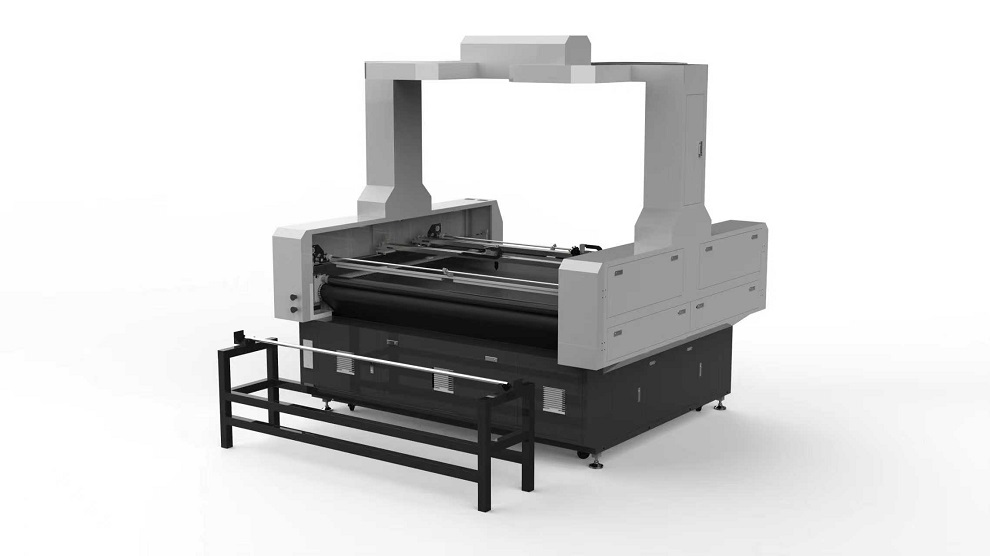

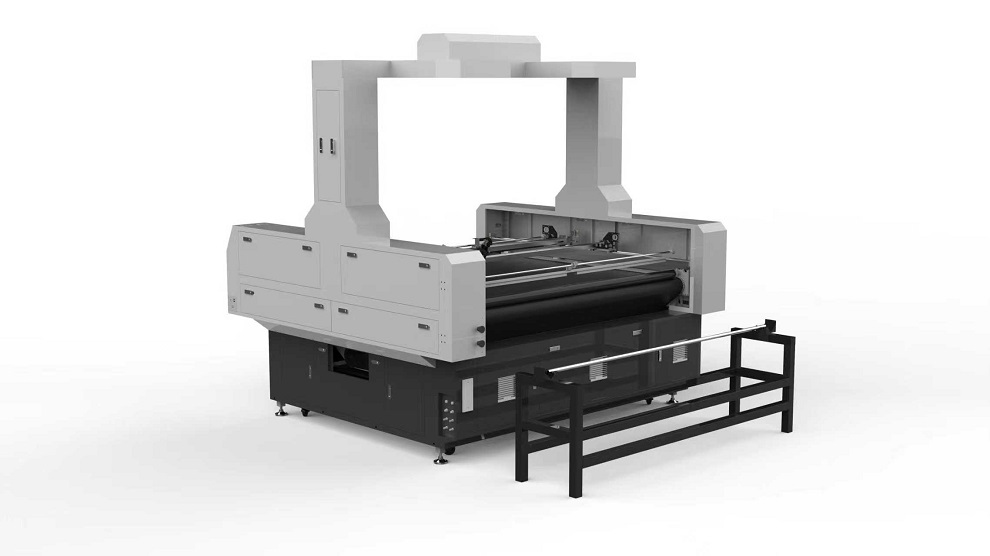

X1814 automatic feeding laser cutting machine
X1814 automatic feeding laser cutting machine

Features:
1.High Efficiency & Material Savings:
Dual-laser processing combined with an auto-nesting system ensures fast cutting speeds and optimal material utilization.
2.Continuous Automated Production:
The integrated track-type automatic feeding and collection system enables non-stop operation, significantly improving workflow efficiency.
3.Precision & Versatility:
Capable of smooth, fine cuts on large formats, suitable for processing full fabric rolls and a wide range of flexible materials.
4.Customizable & User-Friendly:
The feeding platform and working area can be customized. The automatic system simplifies operation, reducing manual labor and saving time.
5.Broad Industry Application:
Ideal for various sectors including apparel, textiles, filtration, footwear, toys, and packaging, handling materials from fabrics and leather to paper and composites.

X2-1390 Precision Laser Cutting Machine Parameter:

Working area 1300mm×900mm
Laser power 150w/300w/450w/600w
Cutting accuracy ±0.1
Max cutting thickness 30mm (acrylic)
Repeat position accuracy <0.05mm
Compatible format DXF, Type3, CDR, AI, etc
Power rating 5kw
Dimension 2100mm×1850mm×1300mm
Voltage AC220V 50Hz
Transmission Screw
N.W. 650kg

Resource

Applicable Materials:
Cloth, Filter Fabric, Footwear Materials, Home Textiles, Garment Fabrics, Industrial Textiles, Carpets, Plush Toys, Paper, Leather, etc.

Application Industries:
Apparel Manufacturing, Environmental Filtration, Textile Processing, Plush Toy Production, Leather Goods, Computerized Embroidery, Canvas & Seat Cover Manufacturing, Packaging, and Paper Industries.
